Strong® Carbon Series Medium Single Arm Articulating Mount | 24" - 55" Televisions
The Carbon Series Single Arm Articulating Mount offers 19" of extension with a 100 lb. UL Listed weight capacity to ensure durability for any install. The TV plate comes standard with up to a 200 x 300 VESA pattern, but included adapter plates allow up to 400 x 400 VESA pattern compatibility.
Easy Cable Management
Comes equipped with 3 cable management clips that easily snap on to the articulating arms to keep cables neat and tidy.
Swiveling up to 180 degrees and extending out from the wall 19”, this mount moves fluidly with minimal force required.

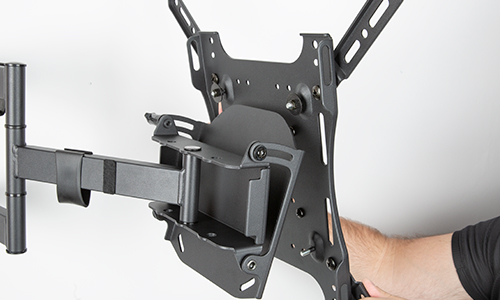

Easily mount the TV plate to the articulating arms using the conical washers on the back to guide the plate into place. Secure the mount using the bolts and wing nuts for a quick and easy install.
VESA Pattern Versatility
We know that TV manufacturers are always changing placement of power, inputs, and outputs on the back of the TV, so we wanted to make sure we had a solution for any possible design. The single arm articulating mount comes with adapter brackets that go up to 400 x 400. H-pattern brackets can be purchased separately to allow up to a 600 x 400 VESA pattern.
The TV plate has +/- 5° of roll adjustment built in for easy post-install leveling. Loosen the nuts on the back of the plate, roll to level as necessary, and tighten back in place.
The arm assembly base plate has a tilt angle of +12° / -5°, making it easy to get the TV at the perfect viewing angle. Simply loosen the ratchet handle, adjust the tilt, and tighten it back up. No tools required.
Mark Your Spot
The center-hanging hole at the top of the wall plate allows you to drill a sheetrock screw for temporary hanging
Mounting Template Included
Mounting template included to make measurement, pre-planning, and single-person install as easy as possible.
UL Certified for Strength and Durability
This Carbon Series Mount is UL Certified for strength and durability, so you know your customers will be in good hands. When a mount is tested by UL, it is tested to withstand 4 times its holding capacity. You should never go above the listed weight limit of this mount – just know it can handle the weight it promises.
Lifetime Limited Warranty
Strong® Mount products have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
